Understanding Unvented Attic Designs: A Better Way to Insulate
When it comes to attic insulation, a newer approach in the building industry has been gaining traction—and for good reason. This approach, known as the closed attic or unvented attic assembly, moves the thermal boundary so the attic is located within your home’s thermal envelope, creating a semi-conditioned space that offers several important benefits. Surprisingly, this “new-age” design concept, which involves eliminating traditional attic ventilation, dates back to the mid-1980s. Since then, unvented attic assemblies have shown outstanding performance and helped improve both energy efficiency and indoor air quality.
In this article, we'll explain how unvented attic assemblies work, why they’re beneficial, and what makes them different from traditional vented attic designs.
What is an Unvented Attic Assembly?
Traditional attic designs use vents to move air in and out of the attic to remove moisture from the attic to prevent moisture buildup and condensation during the winter. However, this also means that attics experience extreme temperatures in the summer and winter, and any ductwork or HVAC systems located in the attic are exposed to these extreme conditions. As a result, the system must work harder to heat or cool your home, and this reduces energy efficiency.

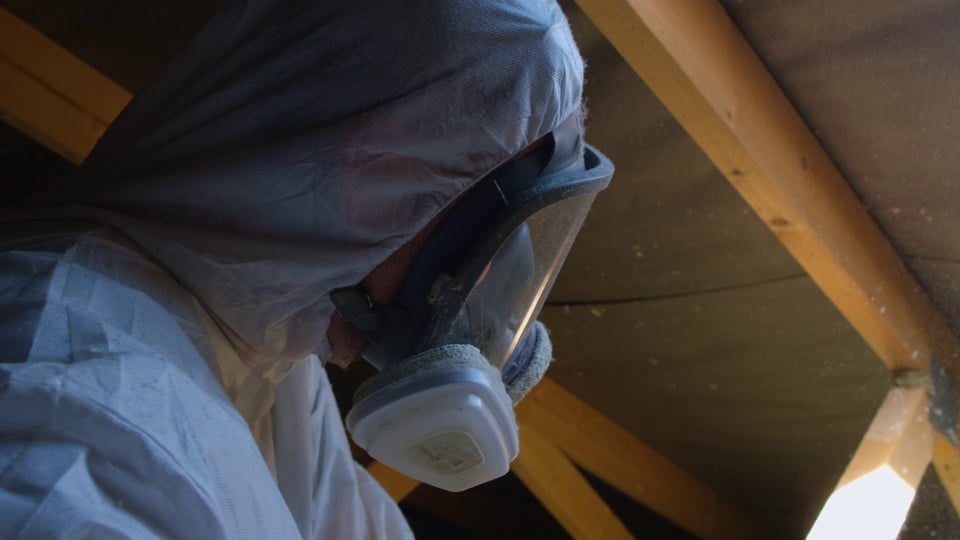

In contrast, an unvented attic assembly involves applying an air-impermeable insulation—like spray foam—directly to the underside of the roof deck, rather than on the attic floor. This design shifts the thermal boundary from the ceiling plane to the underside of the roof, effectively enclosing the attic within the building’s conditioned space. By encapsulating the attic in this way, we create a semi-conditioned space that keeps temperatures stable and reduces the impact of outside weather on the attic.
IRC Section 806.5 Allows Unvented Attics
The International Residential Code (IRC) Section 806.5 provides specific guidelines for creating unvented attic and enclosed rafter assemblies. These guidelines include requirements for using an air-impermeable insulation like spray foam, applied directly to the roof deck. By following these guidelines, builders can create unvented attic spaces that offer excellent thermal performance and protect the home from unwanted air infiltration and moisture issues.
Key Benefits of Unvented Attic Assemblies
Unvented attic designs offer a range of benefits that make them a smart choice for modern homes. Here’s a closer look at some of the major advantages:
- Bringing HVAC Systems Inside the Thermal Envelope
One of the biggest benefits of unvented attics is that they allow HVAC systems, including air handlers and ductwork, to be placed inside the thermal envelope. This means that the HVAC system is now in a space that is closer to the home’s indoor temperature.
This setup lowers the temperature difference, or delta T, across the HVAC system, which reduces the strain on the equipment. The system doesn’t have to work as hard to maintain the desired indoor temperature, which translates into better efficiency, lower energy bills, and a longer lifespan for the equipment.
- Reduced Heat and Moisture Loads
In traditional vented attics, hot air from outside is allowed into the attic through the vents. This hot, humid air creates a heat and moisture load above the living space, making it more challenging to cool the home and increasing the risk of moisture-related issues.
By creating a closed attic, we eliminate the need for ventilation, which reduces heat and moisture loads in the attic space. The spray foam insulation acts as an air barrier, preventing unwanted outside air from infiltrating into the attic. This change helps keep the attic space cooler in summer, reduces humidity, and minimizes the risk of mold and moisture damage in the attic.
- Protection from Exterior Contaminants
Another advantage of unvented attics is that they keep out exterior contaminants, like dust, pollen, ragweed, dander and outdoor pollutants, that would otherwise enter through the vents in a traditional attic. This can help improve indoor air quality, making the home a healthier environment.
Semi-Conditioned Attics: How the Design Works
In unvented attic designs, the attic becomes a “semi-conditioned” space. This semi-conditioned design is due to several passive factors:
- Connection with the Living Space: The ceiling membrane that separates the attic from the living space allows passive air exchange between the two areas.
- Convection Currents: Temperature differences between the attic and living space create natural convection currents that help keep the attic temperature more consistent.
- Duct Leakage: Even though it’s a closed system, most ductwork has some leakage. In a closed attic, these leaks are maintained in the attic space and contribute to stabilizing the temperature in the attic, helping to keep it close to the temperature of the rest of the house.
With these factors in place, attic temperatures typically stay within 8 to 15 degrees of the living space. During the hottest parts of the day, the attic temperature remains around 85°F to 90°F, rather than reaching the 120°F+ temperatures commonly seen in vented attics.
Is an Unvented Attic Right for You?
If you're considering a new insulation project, an unvented attic might be a great option. Not only does it provide improved efficiency and comfort, but it also helps protect your home from moisture and contaminants. Using spray foam insulation for this purpose offers superior air-sealing and thermal performance, making it an ideal choice for unvented attic assemblies.
For more information on how unvented attic designs can benefit your home, reach out to us today. We’re here to help you find the best insulation solution to meet your needs.
